This is an example of how to use the Espressif ESP32-C3-DevKitM-1 to drive a WS2812B-64 Led Strip. The WS2812 is a digital RGB LED which integrates a driver circuit and a single control wire. This example will illustrate how to drive an WS2812B-64 LED strip but can be easily adopted to drive a led strip of a different size.

How to Use Example

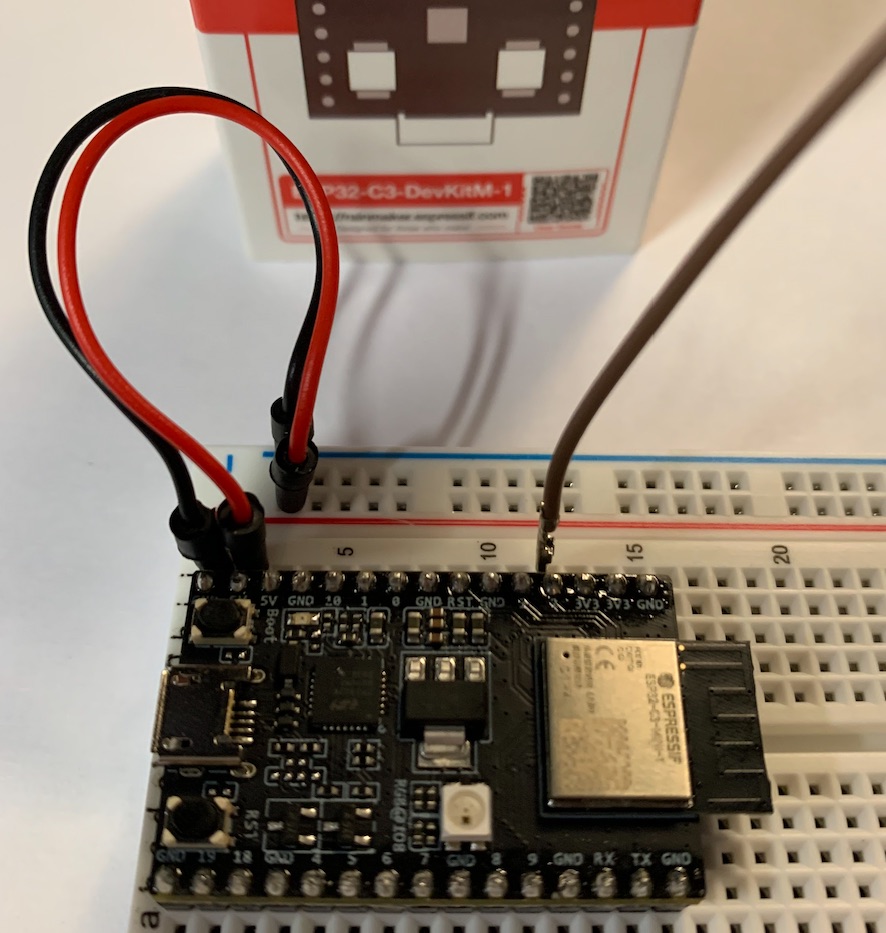

ESP32-C3DevKitM1

Hardware Required

  • A development board with an ESP32 SoC, in this case we are using the new ESP32-C3DevKitM1
  • A USB cable for Power supply and programming
  • A WS2812 LED strip

Connection:

                             --- 5V
                              |
                              +
GPIO2 +-----------------+---|>| (WS2812B-64)
                        DI    +
                              |
                             --- GND

Configure your computer

This presumes some version of Linux or MacOS with dev tools installed and a python version 3.8 (as of now 3.9 will not work). Details can be found here

ESP-IDF Setup

mkdir -p ~/esp
cd ~/esp
git clone --recursive https://github.com/espressif/esp-idf.git
cd ~/esp/esp-idf
./install.sh
. $HOME/esp/esp-idf/export.sh

Demo Setup

cd ~/esp
git clone https://github.com/cashoefman/esp32-c3-rainbow-led-strip.git

Open the project configuration menu (idf.py menuconfig).

In the Example Connection Configuration menu:

  • Set the GPIO number used for transmitting the IR signal under RMT TX GPIO optin. (Default is 2)
  • Set the number of LEDs in a strip under Number of LEDS in a strip option. (Default is 64)

Build and Flash

Run idf.py set-target esp32c3 to set the target for compilation to the ESP32-C3 Run idf.py flash monitor to build, flash and monitor the project.

To exit the serial monitor, type Ctrl-].

Hardware Setup

Connect the Input signal of WS2812B-64 LED strip to the GPIO you set in menuconfig and connect power to the Led Strip.

When you run the example, you will see a rainbow effect. To change the speed, you can update the EXAMPLE_CHASE_SPEED_MS value in led_strip_main.c file.
